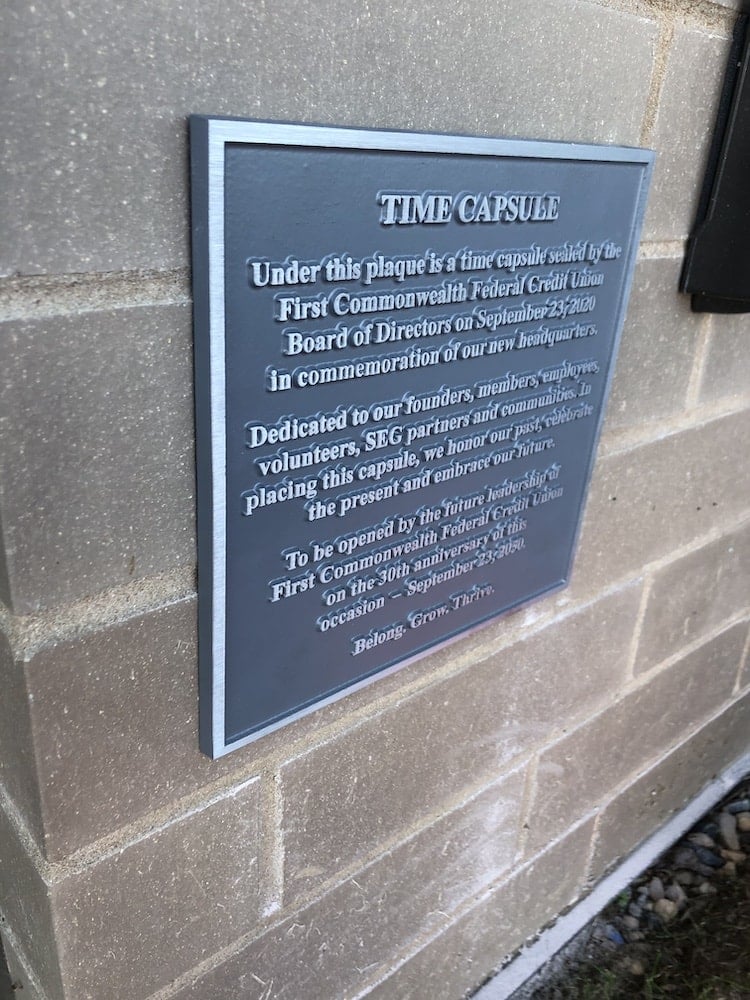

How to Install Metal Plaques on Brick or Block Walls Using Blind Stud Mounts

Mounting plaques on brick or block walls can enhance the aesthetic appeal and durability of your signage or commemorative markers. Using the correct mounting technique ensures that the plaque remains secure and visually appealing for years. This guide focuses on the blind stud mount technique, which is particularly useful when through hole mounts are not possible.

Understanding Blind Stud Mounts

A blind stud mount involves securing the plaque to a wall using studs that are not visible from the front of the plaque. This method is preferred when a through hole mount is impractical or when a cleaner look is desired.

Why Use Blind Stud Mounts?

  • Aesthetic Appeal: Provides a clean, seamless appearance with no visible screws or bolts.
  • Structural Integrity: Ensures a strong bond without compromising the plaque’s surface.
  • Versatility: Suitable for various wall materials, including brick and block, where drilling through may not be ideal.

Preparation for Installation

Before beginning the installation, gather the necessary tools and supplies to ensure a smooth process.

Tools and Supplies Needed:

  • Mounting pattern
  • Level
  • Hammer drill
  • Masonry bits
  • Tape measure
  • Tape
  • Adhesive (construction grade or epoxy)
  • Compressed air
  • Optional: Masonry shields, wood strips/blocks

Step-by-Step Installation Guide

Follow these detailed steps to install your plaque securely using the blind stud mount technique.

Step 1: Positioning the Template

  • Secure the drilling template flat onto the brick/block wall. If the wall is uneven, tape the pattern onto a flat board.
  • Align the template with the brick mortar joints to ensure you drill into the mortar rather than the brick/block whenever possible.

Step 2: Drilling Pilot Holes

  • Use a hammer drill and a masonry bit to drill pilot holes through the pattern into the mortar (or brick/block if necessary).
  • Select a bit slightly larger than the stud diameter to allow for easy insertion.

Step 3: Cleaning and Installing Shields

  • Blow out the holes using compressed air to remove any debris.
  • Install masonry shields if they are available. If not, ensure the holes are thoroughly cleaned for adhesive application.

Step 4: Securing the Studs

  • Tighten the studs into the plaque. For extra security, you can use a Loctite product to ensure the studs remain firmly in place.

Step 5: Dry Fitting the Plaque

  • Align the plaque with the secured studs over the installed shields to check for proper alignment. Do not press the plaque into the holes yet.

Step 6: Applying Adhesive

  • Prepare the plaque and fill the masonry shield or drilled holes with construction adhesive or epoxy.
  • Generously coat each threaded stud, the stud bosses, and the back of the plaque with adhesive, avoiding the edges.

Step 7: Mounting the Plaque

  • Press the plaque with the threaded studs into the holes until it is tight against the wall.

Step 8: Securing the Plaque

  • Use long strips of tape to hold the plaque in place while the adhesive sets. Apply painters tape on the plaque corners to avoid damage, then secure with duct tape.

Step 9: Finalizing the Installation

  • Leave the plaque taped until the adhesive sets completely and the plaque does not pull away from the wall when the tape is removed.

Additional Tips for Installation

For Solid Plaques:

  • Coat the studs and the back of the plaque with adhesive for a stronger bond.

For Hollow Plaques:

  • Adhere wood or urethane foam strips to the back of the plaque to reinforce the bond. Match the substrate thickness to the depth of the plaque.

Using Wire Anchors:

  • When masonry shields cannot be used, wrap thin copper wire around the studs to act as anchors. This method helps secure the plaque against potential vandalism or accidental pull.

Troubleshooting and Maintenance

Common Issues:

  • Misaligned Holes: If the pilot holes are misaligned, redrill the holes and use additional adhesive to secure the plaque.
  • Weak Bond: Ensure that the adhesive is appropriate for the weight of the plaque and that it sets properly.

Maintenance Tips:

  • Regularly check the plaque for signs of loosening or damage.
  • Clean the plaque gently to avoid damaging the adhesive bond.

That’s a wrap

Following the proper steps for installing metal plaques using blind stud mounts ensures a secure and aesthetically pleasing result. By adhering to these guidelines, you can achieve professional results and long-lasting installations.
